Vinyl Window Frame Options

Fusion-Welded Frames and Hollow Chambers

Look at the corner of a vinyl window. On many units the frame and sash corners are heat-welded: the ends of the lineals are melted and pressed together into one piece, and the seam is cleaned off. A mechanically fastened corner, joined with screws and sealant, is another way to build it. Inside the profile, walls divide the extrusion into chambers. HomeGuide notes that more chambers insulate better but cost more to make. Chamber count isn't on the energy label, though; the frame's effect shows up in the whole-window U-factor, so compare that number rather than a brochure cross-section.

Metal-Reinforced and Foam-Filled Frames

Vinyl isn't stiff on its own, so tall sashes, wide sliders and meeting rails often get a steel or aluminum stiffener slid into a chamber. Ask where a series uses reinforcement, especially on the meeting rail of a large double-hung. The Department of Energy points out that vinyl's hollow cavities can also be filled with insulation, which makes the frame perform better than standard vinyl or wood. Ask whether foam fill is standard in the series or an upgrade with its own price.

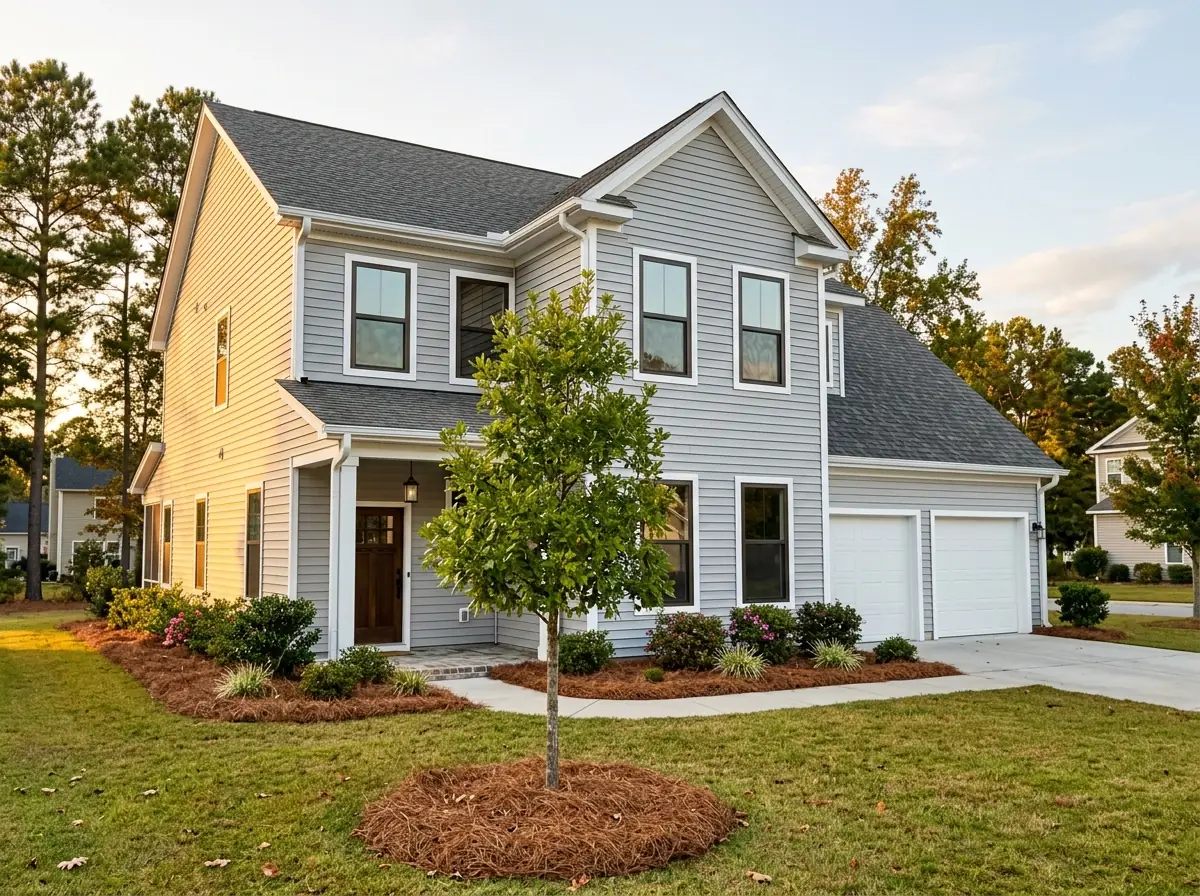

Newer two-story suburban house with dark bronze exterior vinyl double-hung windows against light gray siding, young live oak in the front yard, late afternoon sun

Painted, Laminated and Co-Extruded Colors

White and tan vinyl are the same color all the way through. Darker exteriors are made three ways. A laminate is a film, often woodgrain or a solid dark color, bonded to the outside face. Co-extruded capstock is a weather-resistant colored layer formed onto the profile as it's made. Paint is sprayed on after manufacture. A dark frame gets hotter in the sun than a white one, so ask whether the maker rates the series for the color you want, and what its published finish warranty says about fading and peeling.

Vinyl Window Series, Entry to Top Tier

Vinyl lines are usually sold in tiers. The entry series uses thinner walls, fewer chambers and a basic glass package. Upper series add reinforcement, foam, better weatherstripping, heavier hardware and a wider choice of glass and colors. The same opening can be priced very differently depending on which tier the quote uses, so make sure two quotes name a series, not just "vinyl double-hung."

Performance Grade (PG) Labels

The 2021 residential code that South Carolina uses requires exterior windows to be tested by an independent lab and labeled for compliance with AAMA/WDMA/CSA 101/I.S.2/A440, the North American Fenestration Standard. The label carries a performance class and a grade in pounds per square foot, written along the lines of "R-PG35." A PG rating means the window passed the full set of tests: structural load (ASTM E330), air leakage (ASTM E283, with 0.3 cfm per square foot allowed for the R, LC and CW classes), water penetration (ASTM E547), operating force, and forced entry (ASTM F588). A DP (design pressure) rating covers structural load only. Homes normally use the R class; the heavier classes are covered on the commercial window replacement page. The standard has been revised several times; the 2022 edition was the fourth, and a 2026 edition has been published.

Cutaway corner of a white vinyl window frame with double-pane glass, a tape measure and a clipboard on a table

Why Columbia homeowners call Columbia Window Co.

Your request goes to one independent local window installer, not a list of callers
The installer measures each opening in person before any price
Ask for a written quote naming the frame, glass package and install method
Free to homeowners: no fee for the referral or the estimate

Vinyl Window Prices

HomeGuide puts vinyl windows at $350 to $1,500 per window installed, nationally, with labor alone at $100 to $500 of that. Size, style and series set where a quote lands in that range. A small single-hung in a builder line sits at the bottom; a large double-hung in a top series with a dark laminate sits near the top. For the regional resale figures and whole-house numbers, see retrofit window replacement.
